VACULIFT
Easy & Safe Lifting Solution for Heavy Materials
Vaculift
As the inventor of sophisticated vacuum lifting technologies,
we are manufacturing VACULIFT for more than 50 years.
Innovative and efficient transport solutions which improve production processes in a variety of industries.
With pride we refer to more than 28,000 VACULIFT which are used worldwide and VACULIFT has the leading position at the national and international levels.
Useful Information of VACULIFTⓇ
E-book
  • VACULIFTⓇ
    GREEN LINE (Non-Power Lifting)
    • Energy independent
    • Automatic work-cycle
    • Plug & Play, immediately ready for operation
    • Standard and customised solutions
    • Lifting capacity up to 7,000KG
    • Low maintenance even if the going gets tough
    • Simply controlled e.g. by crane control
    • For indoor and outdoor use
    • Sophisticated devices by 50 years of experience
    • Made in Germany
    For gentle, horizontal transport of smooth, non-porous loads
Product Description & Tailor-made
VACULIFTⓇ
TYPE U01-E U02-E U075-E U075-2 U125-E
lifting capacity kg / lbs 75 / 165 270 / 595 640 / 1411 750 / 1653 1100 / 2425
max. dimension of the load mm /
inch		 1000*1000
39*39"		 2000*1000
79*39"		 2000*1000
79*39"		 3000*1500
118*59"		 2000*2000
79*79"
min. load dimension mm /
inch		 Ø 210
8"		 Ø 350
14"		 Ø 480
19"		 840*415
33*16"		 Ø 625
25"
min. thickness mm /
inch		 2
0.08"		 2
0.08"		 2
0.08"		 2
0.08"		 2
0.08"
dead weight kg / lbs 5 / 11 22 / 49 83 / 183 127 / 280 135 / 298
suction pads number / size mm /
inch		 1 / Ø 210
8"		 1 / Ø 350
14"		 1 / Ø 480
19"		 2 / Ø 415
16"		 1 / Ø 625
25"
min. load kg / lbs 5 / 11 10 / 22 35 / 77 20 / 44 35 / 77
length x width x switching height mm /
inch		 210*210*440
8*8*17"		 350*350*615
14*14*24"		 480*480*850
19*19*33"		 1915*415*1070
75*16*42"		 625*625*950
25*25*37
  • VACULIFTⓇ
    RED LINE (Electric Lifting)
    • For almost every kind of material and application
    • Standard and customised solutions
    • Robust and durable systems in top quality
    • Lifting capacity (WLL) up to 150.000KG and more
    • Easy controlled by e.g. hand lever,…
    • Available standard voltages 24 – 500 Volt
    • Increased safety beyond DIN EN 13155
    • Safe in case of power failure
    • For indoor and outdoor use
    • Sophisticated devices by 50 years of experience
    • Made in Germany
    Horizontal or vertical transport of loads
    Pivoting, turning and mobile systems
    Also for loads with rough surface, tubes, coils, facade parts & more
Product Description & Tailor-made
VACULIFTⓇ
TYPE H-E-150 H-2-1250 H-4Q-1250 H-4K-1250
lifting capacity kg / lbs 150 / 330 1.250 / 2.765 1.250 / 2.765 1.250 / 2.765
max. dimension of the load mm /
inch		 1.000*1.000
39*39"		 3.000*1.500
118*59"		 1.200*1.100
47*1.43"		 4.000*2.000
157*79"
min. load dimension mm /
inch		 ø 280
11"		 1.350*630
53*25"		 700*460
28*16"		 1.000*500
39*20"
min. thickness mm /
inch		 1
0,04"		 2
0,08"		 2
0,08"		 2
0,08"
dead weight kg / lbs 64 / 141 184 / 406 244 / 538 215 / 474
suction pads number / size mm /
inch		 1 / Ø 270
11"		 2 / Ø 650
26"		 4 / Ø 495
19"		 4 / Ø 495
14"
dimension
(L*W*H)		 mm /
inch		 610*840*695
24*33*28"		 1.500*890*700
59*35*28"		 1.800*1.000*825
71*39*32"		 2.760*840*820
112*33*32"
Connected load
(100-500 V available)		 V / Hz / kW 230 V; 50 Hz; 0,3 kW
110 V, 60 Hz, 0.3 kW		 230 V; 50 Hz; 0,6 kW
110 V, 60 Hz, 0.3 kW		 230 V; 50 Hz; 0,3 kW
110 V, 60 Hz, 0.3 kW		 230 V; 50 Hz; 0,3 kW
110 V, 60 Hz, 0.3 kW
  • VACULIFTⓇ
    BLUE LINE (Pneumatic Lifting)
    • For almost every kind of material and application
    • Standard and customised solutions
    • Robust and durable systems in top quality
    • Lifting capacity (WLL) up to 150.000 kg and more
    • Easy controlled by hand lever
    • Powered by compressed air (6 bar)
    • Increased safety beyond DIN EN 13155
    • Safe in case of power failure
    • For indoor and outdoor use
    • Sophisticated devices by 50 years of experience
    • Made in Germany
    Horizontal or vertical transport of loads
    Also for pivoting or turning systems
    For loads with smooth or rough surface, tubes, coils, facade parts & more
Product Description & Tailor-made
VACULIFTⓇ
TYPE H-E-150 H-2-1250 H-4Q-1250 H-4K-1250
lifting capacity kg / lbs 150 / 330 1.250 / 2.765 1.250 / 2.765 1.250 / 2.765
max. dimension of the load mm /
inch		 1.000*1.000
39*39"		 3.000*1.500
118*59"		 1.200*1.100
47*1.43"		 4.000*2.000
157*79"
min. load dimension mm /
inch		 ø 280
11"		 1.350*630
53*25"		 700*460
28*16"		 1.000*500
39*20"
min. thickness mm /
inch		 1
0,04"		 2
0,08"		 2
0,08"		 2
0,08"
dead weight kg / lbs 64 / 141 184 / 406 244 / 538 215 / 474
suction pads number / size mm /
inch		 1 / Ø 270
11"		 2 / Ø 650
26"		 4 / Ø 495
19"		 4 / Ø 495
14"
dimension
(L*W*H)		 mm /
inch		 610*840*695
24*33*28"		 1.500*890*700
59*35*28"		 1.800*1.000*825
71*39*32"		 2.760*840*820
112*33*32"
  • VACULIFTⓇ

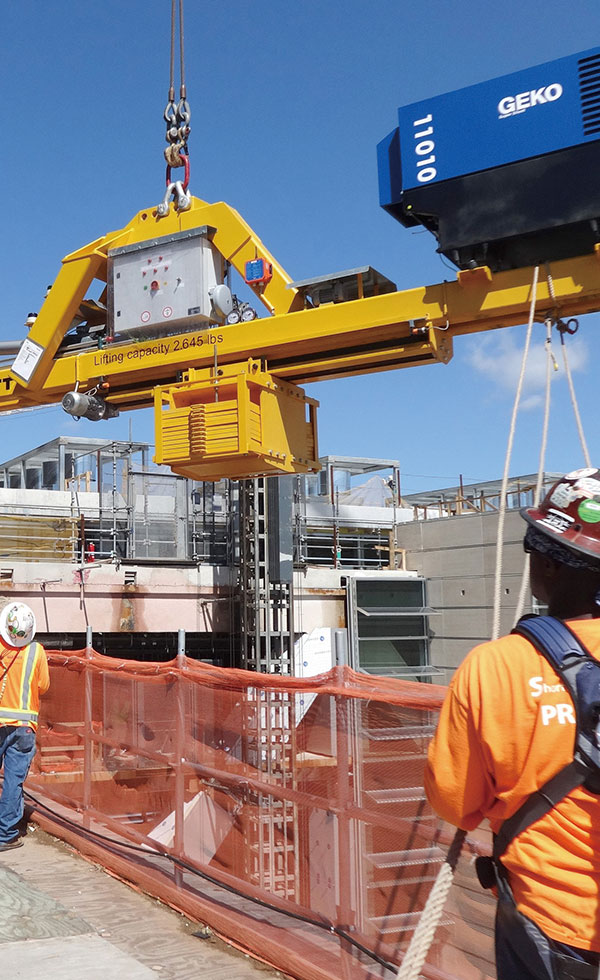

    GOLD LINE (Battery Lifting)
    • For almost every kind of material and application
    • Standard and customised solutions
    • Robust and durable systems in top quality
    • Lifting capacity (WLL) up to 150.000 kg and more
    • Easy handling
    • Battery powered with mains charger
    • Also available with diesel generator
    • 2 vacuum circuits for more safety on site
    • Increased safety beyond DIN EN 13155
    • For indoor and outdoor use
    • Sophisticated devices by 50 years of experience
    • Made in Germany
    Horizontal or vertical transport of loads or for pivoting or turning systems
    For loads with smooth or rough surface, tubes, coils,facade parts & more
Product Description & Tailor-made
VACULIFTⓇ
TYPE Domicile 1 K Basic Domicile 1 K Pro
lifting capacity kg / lbs 400 / 882 200 / 441 400 / 882
load dimension mm / inch 4000-12000 / 13-40 4000-12000 / 13-40
dead weight mm / inch 140 / 309 160 / 353
dimension (L*W*H) mm / inch 1085*3650*1000 / 43*144*39 1140*3650*1000 / 45*144*39


VACULIFTⓇ
TYPE Domicile 2 K Basic Domicile 2K Pro
lifting capacity kg / lbs 400 / 882 200 / 441 400 / 882
load dimension mm / inch 4000-12000 / 13-40 4000-12000 / 13-40
dead weight mm / inch 155 / 342 166 / 366
dimension (L*W*H) mm / inch 1085*3650*1000 / 43*144*39 1140*3650*1000 / 45*144*39
